Light Weight Dry Mortar Production Line , Tile Adhesive Mixing Machine

Name: Light Weight Dry Mortar Production Line Tile Adhesive Mixing Machine
Brand: Mind
Price: 3000 USD

Wholesale Light Weight Dry Mortar Production Line , Tile Adhesive Mixing Machine from china suppliers

Brand Name : Mind

Model Number : 1-5 t/h

Certification : CE,ISO 9001

Place of Origin : Zhengzhou, China

MOQ : 1 Set

Price : USD 3000-5000 / Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300 Set per Month

Delivery Time : 7-20 Working Days

Packaging Details : 1)FCL: in nude for standard exporting container 2)LCL: Poly wood case 3)Wire cables are used for fastening the machine 4)All surfaces are covered by plastic film

Voltage : 220V-440V

Name : dry mortar production line

Raw material : Additives,Cement,Flyash,Sand,Sand Cement Glue Mortar

Capacity : 1-5 T/H

Supplement power(kw) : 17.6-36 kw

Applications : Dry Mortar Plant

Common mortar mixing time(s) : 90-120 s

Special mortar mixing time(s) : 120-300 s

Contact Now

Light Weight Dry Mortar Production Line , Tile Adhesive Mixing Machine

Technical Parameters of Simple Dry Mortar Production Line:

Model	Simple dry mortar plant
Output	1-3t/h
Components	screw conveyor, horizontal ribbon mixer, storage tank, packing machine, control cabinet, air compressor
Occupied area	20m2
Total power	5.5-7.5kw
Mixer volume	330010502100(mm)
Equipment height	3-4 m
Man power	2-3 persons

Brief Descriptions of Dry Mortar Production Line:

1. Simple dry mortar production line (also known as simple dry mortar plant, small putty production line) is on the basis of efficient ribbon powder mixer, with adding configuration of hoist feeder, material storage tank, automatic filling machine and electric control cabinet, to form a effective and reasonable, easy operation production line.

2. Simple dry mortar production line can mix 1 ton per batch, capacity at 25 to 30 tons per day.Mixing time: 10-15min per batch.

3. Feature of this simple dry mortar plant: covers an small area , less investment, quick refund, simple operation (require 2-3 people to operate), etc.

Configuration and Function:

1. Material hoister: for lifting material to mixer.

2. The second hoister: for lifting materials to pre-mix silo

3. The horizontal multi-ribbon mixer: for uniform mixing of material.

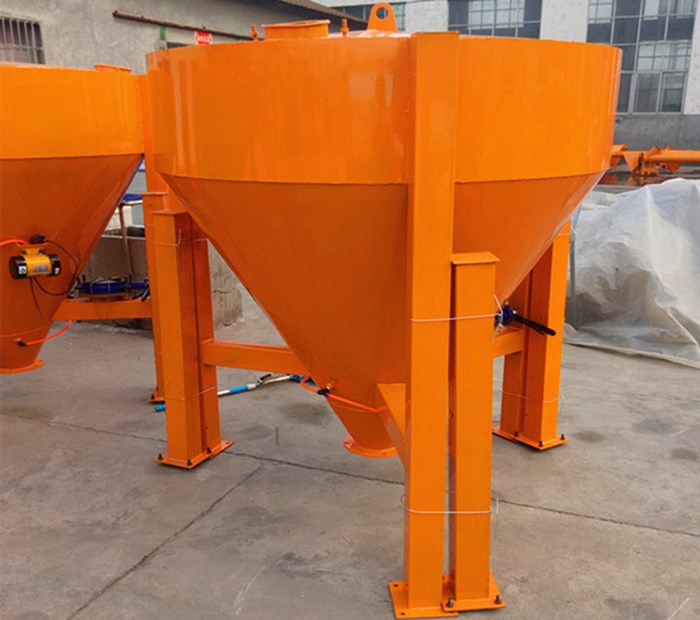

4. Finished product silo: Storing finished material for automatic weighing and package.

5. Automatic packer: with automatic weighing for packing finished product

Light Weight Dry Mortar Production Line , Tile Adhesive Mixing Machine

Packing:

1) FCL: in nude for standard exporting container
2) LCL: Poly wood case
3) Wire cables are used for fastening the machine
4) All surfaces are covered by plastic film
