200m2 40T/H Dry Plaster Mortar Ready Mix Plant with Bag Packaging Machine
Descriptions of Dry Mortar Plant Manufacturer:
Automatic dry mortar roduction line s ased on the latest design concept in Europe, this production line adopts the advanced computer PLC auto-control system, whose production capacity can reach 30-100 thousand tons per year depend on the system configuration.
1.Henan Mind Dry mix mortar manufacturing plants Storage silo(carbon steel or stainless steel) mode: raw material silo, mid-silo, finish product silo.
The dry mix mortar manufacturing plants raw material in the big silo can meet many batch , the amount of silo is decided by your requirement .
2. Conveyor (carbon steel or stainless steel) modes: pneumatic conveyor, vacuum conveyor, bucket elevator, pump truck, belt conveyor, manual feeder.
3. Batching / dosing equipment modes (carbon steel or stainless steel): weighing hopper, pneumatic conveying & weighing pot.
4. Mixer / agitator (carbon steel or stainless steel) : double-shaft paddle mixer, helix mixer (ribbon type mixer), coulter mixer, reactor, conical mixer.
5. Packaging equipment (carbon steel or stainless steel): ton-bag (jumbo bag) packaging machine, valve-bag packaging machine, open bag packaging machine (granular or powdery material).
6. Control system: touch screen (siemens, Mitsubishi, etc.) + PLC.
Technical Parameters of Ready Mixed Dry Mortar Plant:
| Structure type | Type | Mixer type | Mixer volume(m3) | Productivity(t/h) | Annual output(ten thousand T) | Applicable scope |
| Tower type | YBSJ-05L | WZ-1.5 | 1.5 | 9--13 | 4.3-6.2 | Suitable for fine mortar production which takes less land area and more investment |
| YBSJ-10L | WZ-2.5 | 2.5 | 18-23 | 8.5-11 |
| YBSJ-15L | WZ-4 | 4 | 27-35 | 13-17 |
| YBSJ-20L | WZ-6 | 6 | 40-50 | 18-24 | Suitable for coarse mortar production which takes less land area and more investment |
| YBSJ-30L | WZ-10 | 10 | 60-80 | 27-36 |
| YBSJ-50L | WZ-15 | 15 | 90-130 | 43-62 |
| Station type | YBSJ-05Z | WZ-1.5 | 1.5 | 9--13 | 4.3-6.2 | Suitable for normal mortar production which is easier to install and takes less investment |
| YBSJ-15Z | WZ-2.5 | 2.5 | 18-23 | 8.5-11 |
| YBSJ-10Z | WZ-4 | 4 | 27-35 | 13-17 |
| YBSJ-20Z | WZ-6 | 6 | 40-50 | 18-24 | Suitable for normal mortar production which is easier to install and takes less investment |
| YBSJ-30Z | WZ-10 | 10 | 60-80 | 27-36 |
| YBSJ-50Z | WZ-15 | 15 | 90-130 | 43-62 |
The obvious advantages of dry mix mortar manufacturing plants is as following:
1.High capacity: pneumatic conveying is obviously faster than bucket elevater , the mixing time for one batch is about 5 minutes, the capacity of packaging machine is about 8-10t/h
2.Less dust: pneumatic conveying determine the plant with good sealing property, the superiority of pulsed jet cloth filter is that it can release the dust into the product, no wasted material.
3.Less material remains: some material remains in the bottom of the bucket elevater,but there is no such problem in this plant. The high pressure push all the materials into the hoppers.
What is the dry mortar and How to make dry mortar?
- Dry mortar meaning refers to a kind of granule or powder formed by physical mixing of aggregate (such as quartz sand), inorganic cementite material (such as cement) and additive (such as a polymer) processed by drying and screening
- It is transported to the site in bag or bulk, and can be directly used after mixing with water.
- Also known as mortar dry powder, dry mixing mortar, dry mixing powder, some building adhesives also belong to this category.
- In the construction industry, dry mortar plays the role of bonding, lining, protection, and decoration with thin layers, and is widely used in construction and decoration engineering.
- The Main ingredients Chemical composition of mortar is Silica-aluminum hydrochloric acid containing calcium oxide.
Different kinds of dry mortar can be made By Mind Dry mortar production line:
There are many kinds of dry mortar, which are divided into special and common categories in the conventional sense. The common ones include masonry, plastering, ground, and waterproof mortar, while the special ones include anti-crack mortar, interface mortar and tile adhesive mortar, joint mortar, insulation mortar, waterproof mortar, decorative mortar, colored mortar and so on.
The differences lie in the different dry mix mortar recipes. Mind Machine can provide a dry mix mortar recipe for you.
When you want to start to make mortar, you need the dry mortar production equipment. Send your quote now!
Product Tags:
|
|

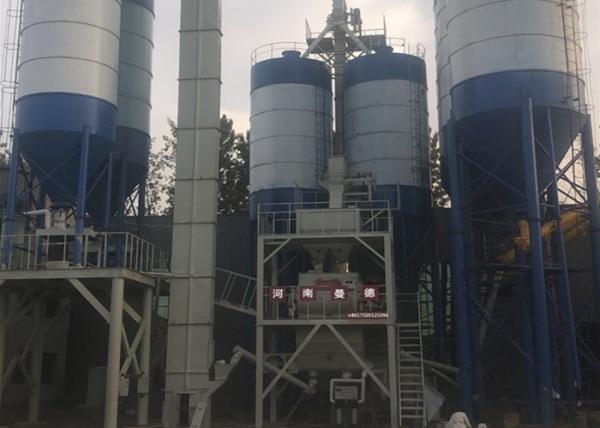

Dry Plaster 200m2 40T/H Dry Mix Mortar Plant Images
|
